Ⅰ.Product features

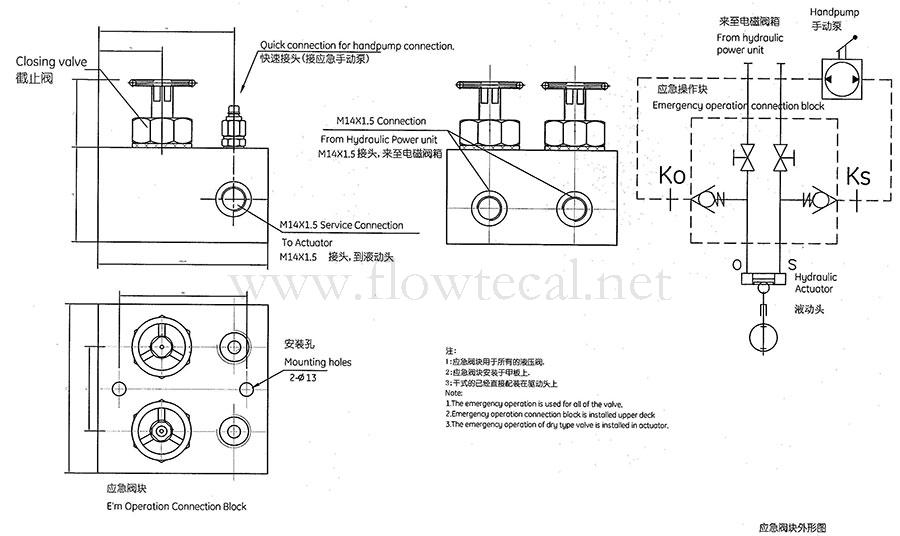

DHA series marine hydraulic actuator adopts the design of cylinder oil pipeline embedment, actuator two ports set for work in gear box panel, in order to install the emergency valve block., Emergency valve block can be used according to the user's specific job requirements configuration two-way hydraulic lock, electro magnetic valve, by-pass valve, hydraulic control components such as emergency hand pump interface. The actuator institutions small and compact, very suitable for ships, drilling platforms and other working environment.

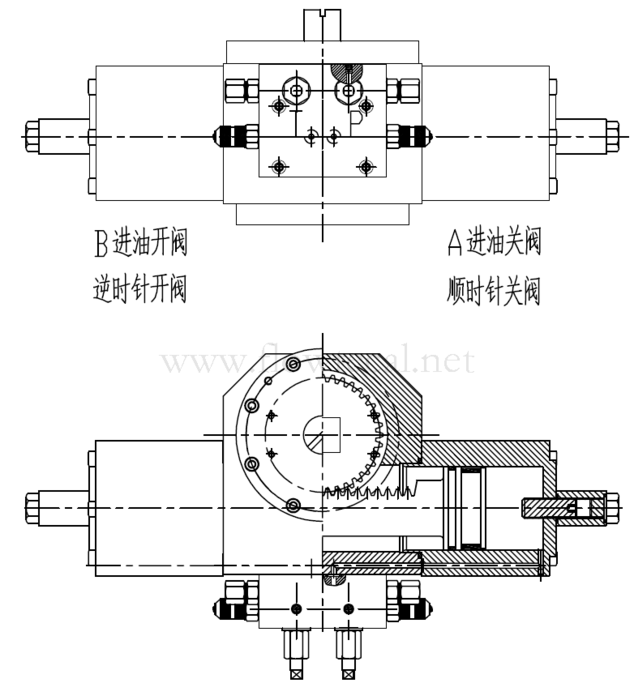

Ⅱ. Working sketch

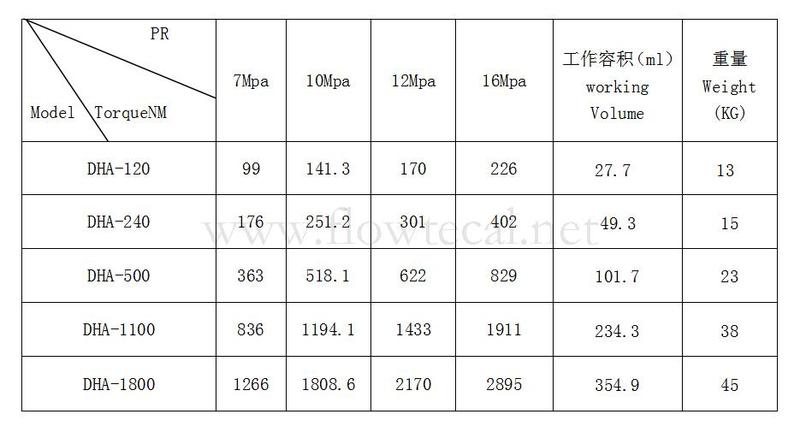

Ⅲ. DHA series actuator output torque and the related parameters

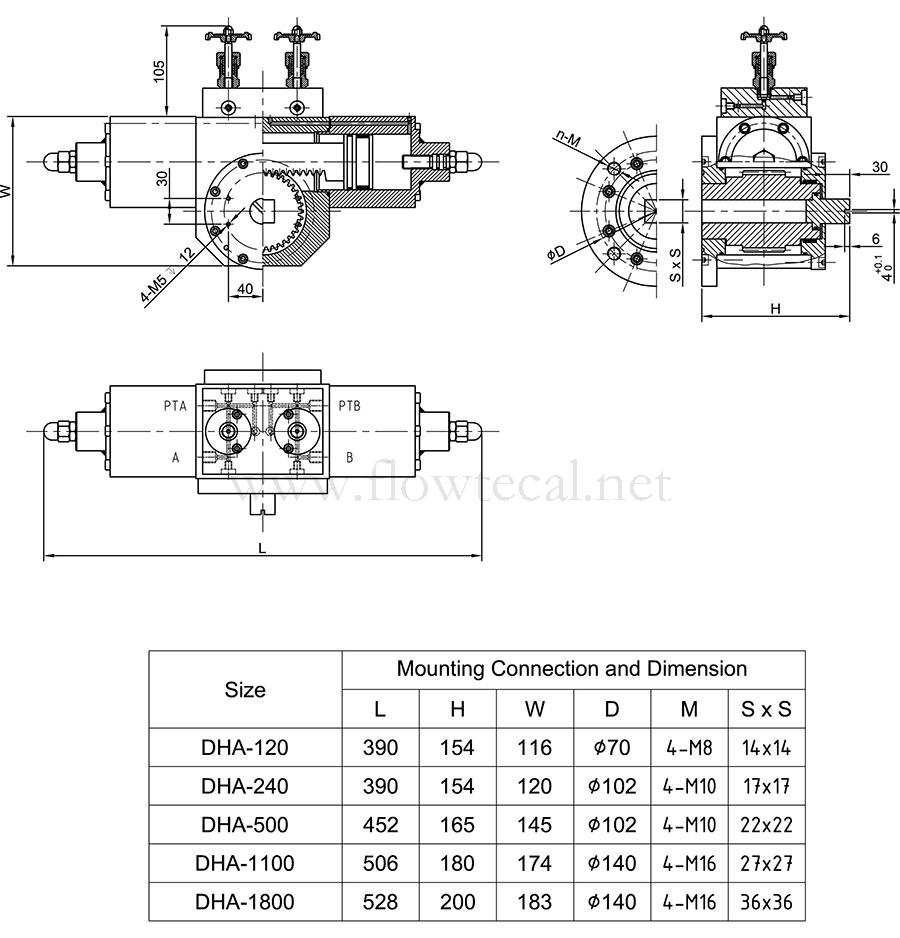

Ⅳ. DHA series actuator structure and overall dimensions
DHA series Marine hydraulic actuators（Download）
