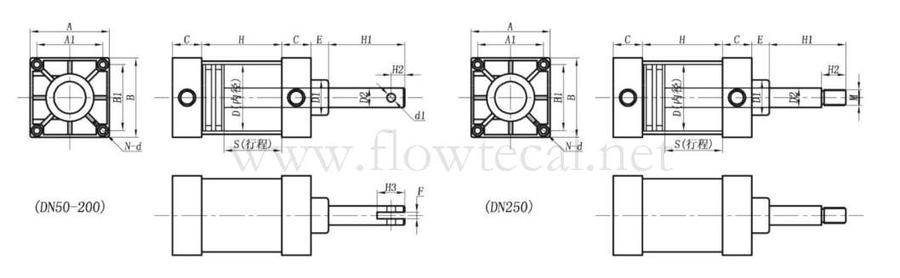

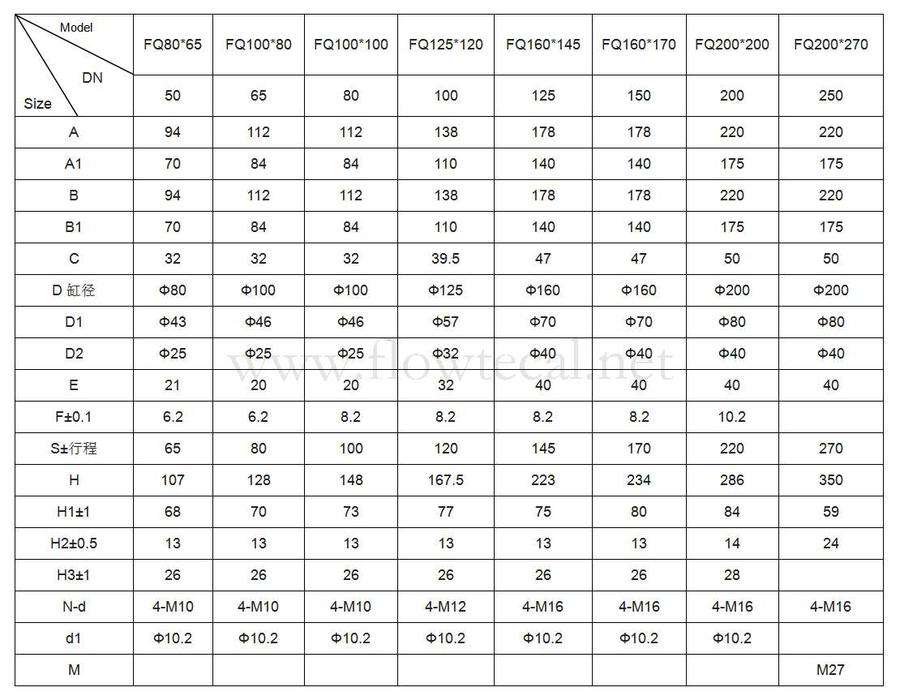

I External dimensions of linear pneumatic actuator for ordinary caliber knife gate valves（DN50～DN250）

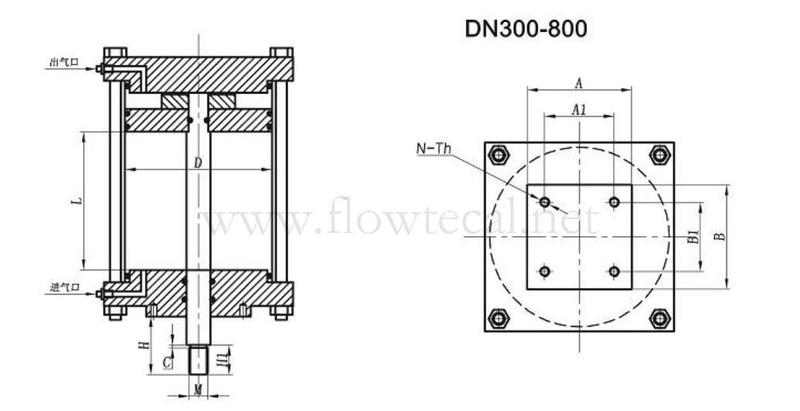

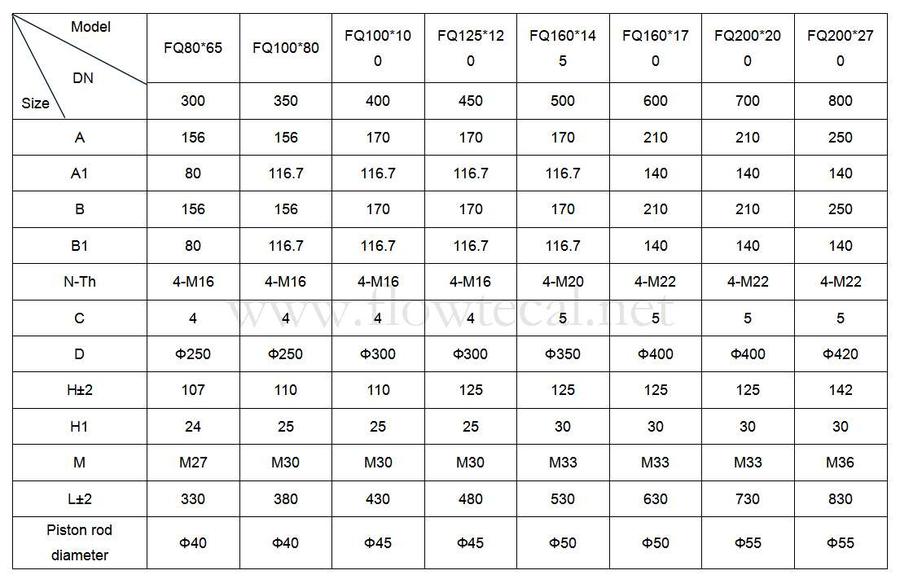

II External dimensions of linear pneumatic actuator for large caliber knife gate valves（DN300-DN800）
III Manu facturing example of large linear pneumatic actuators

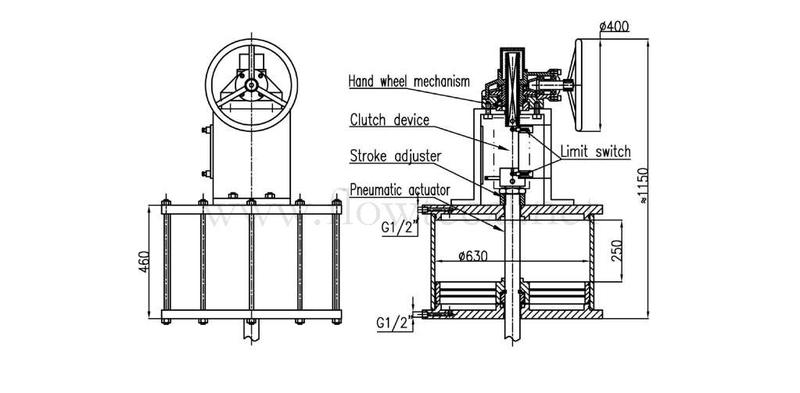

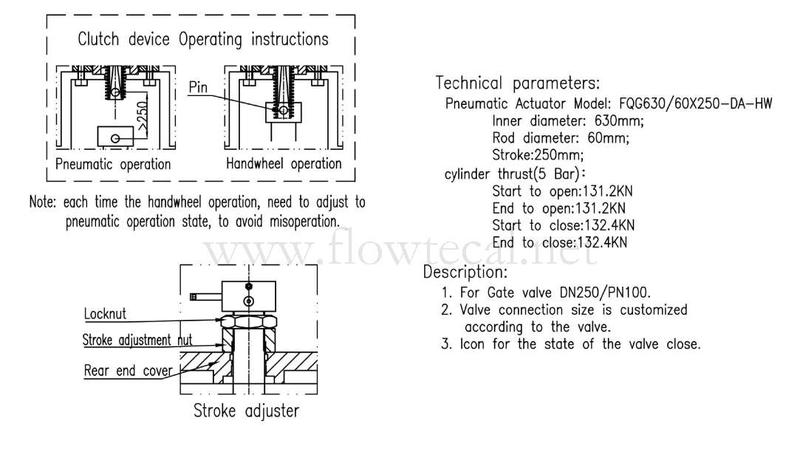

1. Large diameter pneumatic double acting linear actuator (control globe valve with emergency handwheel operation) FQG630*250-DA-HW

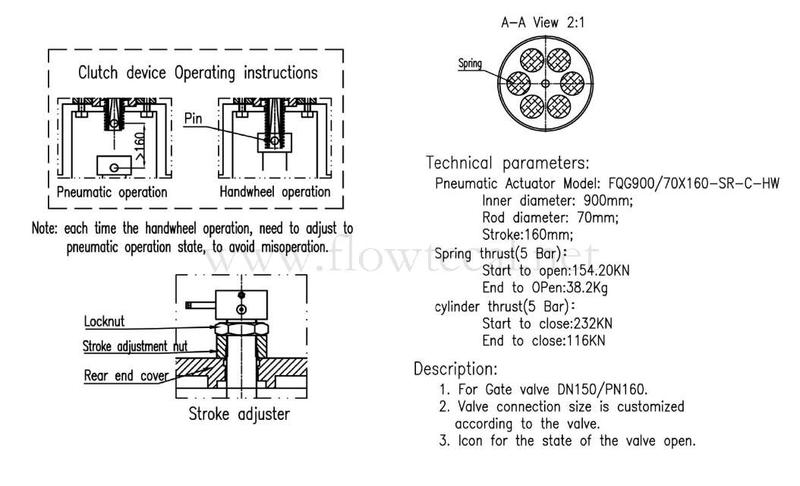

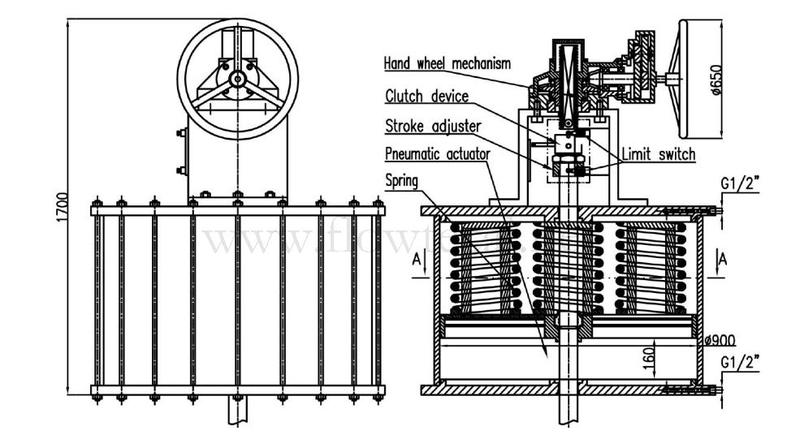

2. Large diameter pneumatic single acting linear actuator (normally closed, control globe valve with emergency hand wheel operation) FQG900*160-SR-C-HW

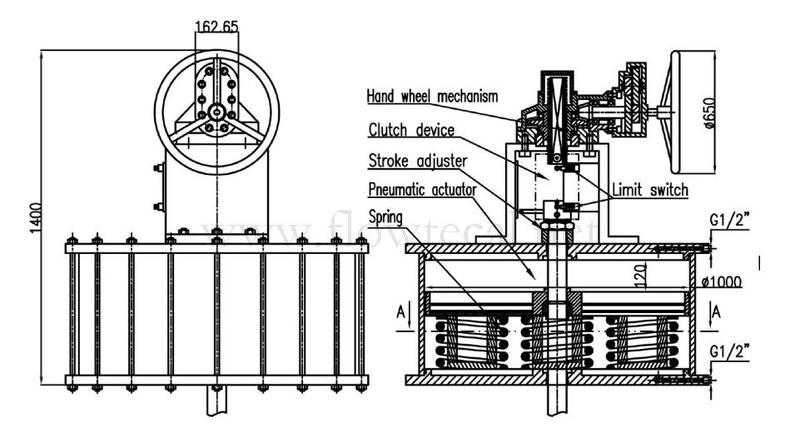

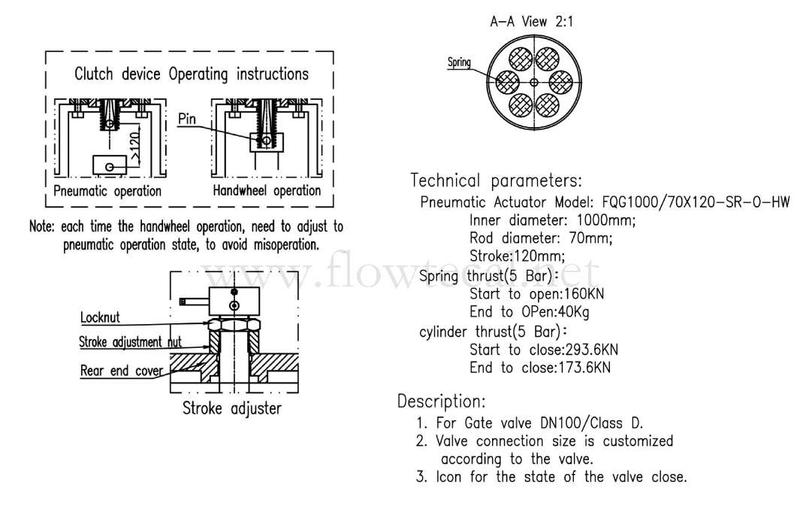

3. Large diameter pneumatic single acting linear actuator (normally open, control globe valve with emergency handwheel operation) FQG1000*120-SR-O-HW
Linear pneumatic actuator for knife gate valves（Download）
