Ⅰ.Product introduction
The FMI series flow-type valve position indicator is a modular assembly featuring a mounting surface compliant with ISO 4401-03-02-0-02/DIN 24340 standards and incorporating a plate solenoid directional valve interface with a 6mm port size. This module consists of a hydraulic manifold valve block, a gear-type volumetric flow meter, and an instrument indicator device. Installed on a mounting plate and operated by a solenoid directional valve for switching, the flow-type valve position indicator serves as a valve position indicator device controlling hydraulic valves in ballast tanks, cargo tanks, and forepeak tank systems on various vessels. The valve position indicator is suitable for installation in deck boxes such as solenoid valve cabinets. Valve open-position indication can be viewed locally through visual indicator or transmitted remotely via signals from a potentiometer or limit switch.
Ⅱ、Technical Parameters & Structural Composition

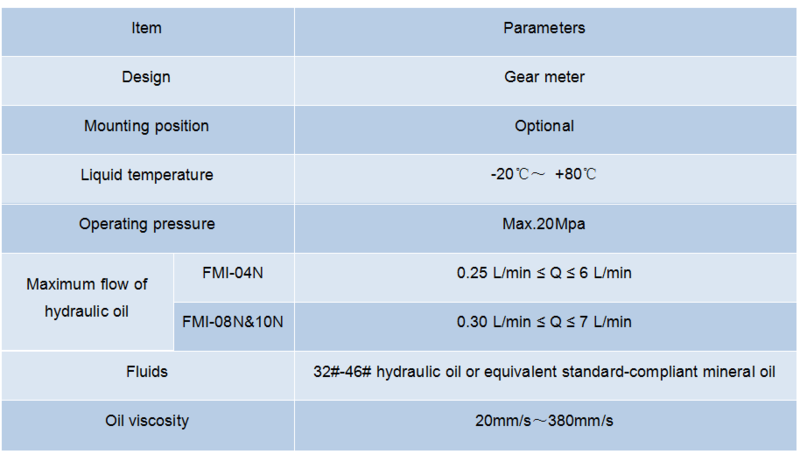

1. Technical Parameters

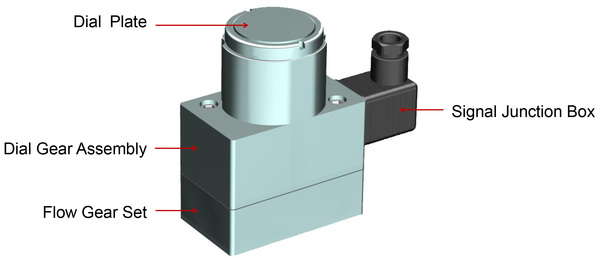

2. Structural components
A. Base model (without valve block)

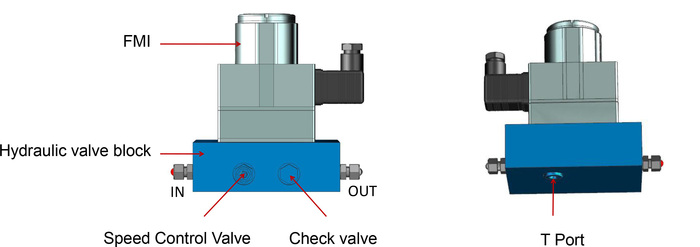

B. Flow meter indicator without solenoid valve, with pipe type threaded connection

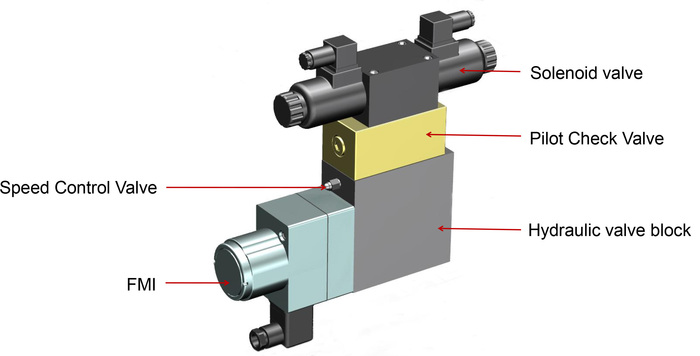

C. With the electro magnetic solenoid valve adopts the plate-type installation

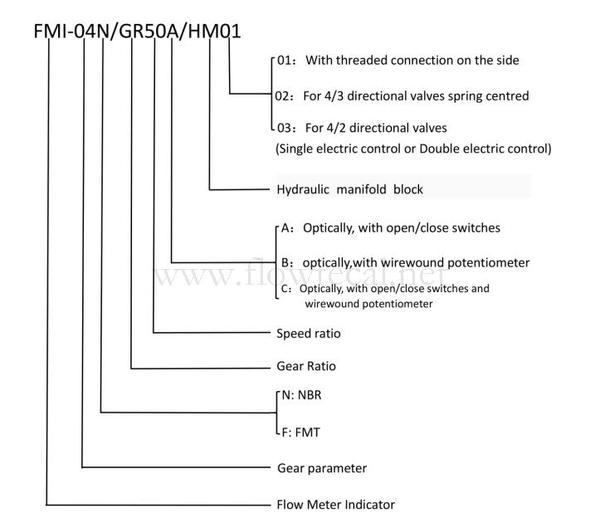

Ⅲ. Flow valve position display (FMI series) model description
Ⅳ.Flow valve position display (FMI series) selection table
Ⅴ.Flow meter indicator overall dimensions and hydraulic working principle diagram
1. Base model (without valve block)
l ON-OFF type
l Regulating Type
2. Flow meter indicator without solenoid valve, with pipe type threaded connection

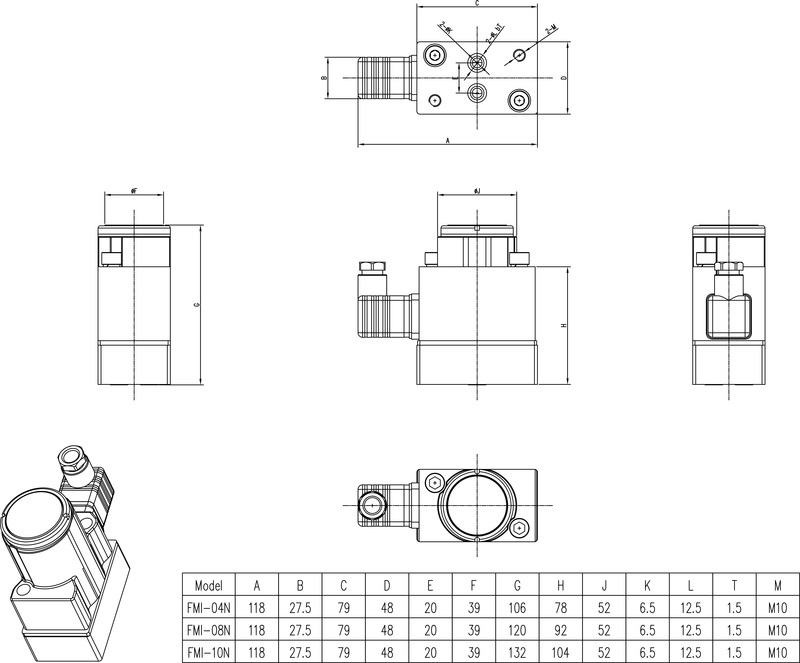

A.Overall dimensions

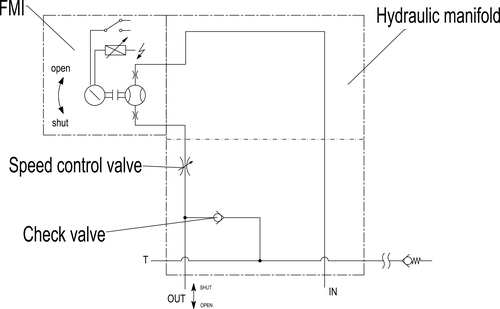

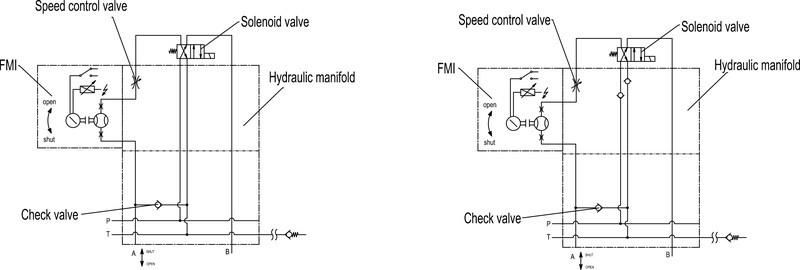

B.Hydraulic principle diagram
3. Flow meter indicator connected with 3/4 solenoid valve
A. Overall dimensions

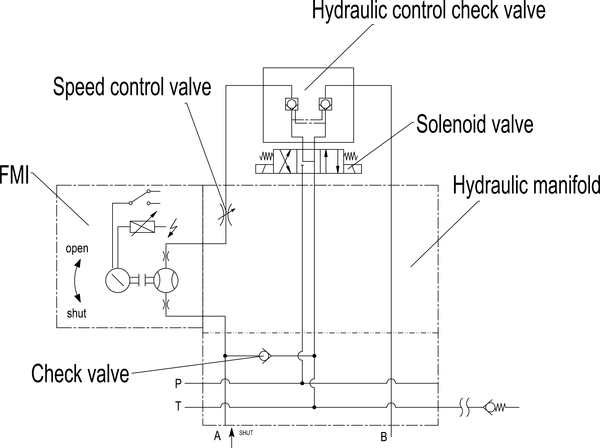

B.Hydraulic principle diagram
4.Flow meter indicator connected with single electric control 2/4 solenoid valve
A.Overall dimensions
B.Hydraulic principle diagram
5.Flow meter indicator connected with double electric control 2/4 solenoid valve
A.Overall dimensions
B.Hydraulic principle diagram
Ⅵ. Overall dimensions and schematic diagram of electrical wiring of the instrument panel
1. Dial Outline Dimension Drawing
ON-OFF type Regulating Type
2. On-off type schematic diagram of electrical wiring
3. Regulating type schematic diagram of electrical wiring
A. Internal wiring diagram
B. External wiring diagram
Ⅶ. Remarks
1. The hydraulic oil flow into FMI valve position indicator should not be too fast (FMI-04N type should be less than 6L/min.,FMI-08N and FMI-10N type should be less than 7L/min.), or it will affect the indicator accuracy of FMI valve position indicator. The working flow of hydraulic oil can be adjusted by adjusting the speed regulating valve on the hydraulic valve block.
2. Normal hydraulic oil is suitable for this valve position indicator, the normal oil temperature should be controlled in -20 ℃ ~ + 80 ℃.
3.On the FMI valve position indicator using the tubular connection valve block, the direction of the pressure oil enters from the IN port and exits from the OUT port, and cannot be connected IN the opposite direction. In addition, port T must be connected to the tank and submerged below the liquid level.
FMI flow valve position indicator （Download）
